I was using a cheap carbon fiber mount that I had to modify because it looks very weak. But the biggest problem I had was finding a case that would fit the radio with out removing the mount. I do not want to buy a huge cage just because of the mount but rather use the Futaba hard case that I already have.
The mount that Evolution 3D makes is not the cheapest thing in the world but I think it is well worth the money. Not only does it look strong but when you removed the monitor you can fit the radio the hard case. I also like how you can adjust the angle of the monitor too and it will fit most 7inch LCD monitor. The mount was designed especially for the Black Pearl but I am using a Bosecam/ Neewer 7 inch Diversity monitor and it fits perfectly.
Adjustable Quick Release FPV LCD Monitor Mount Bracket by Evolution 3D

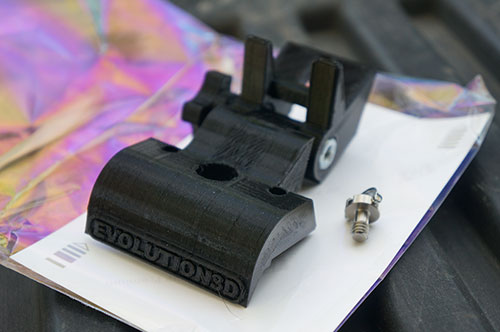

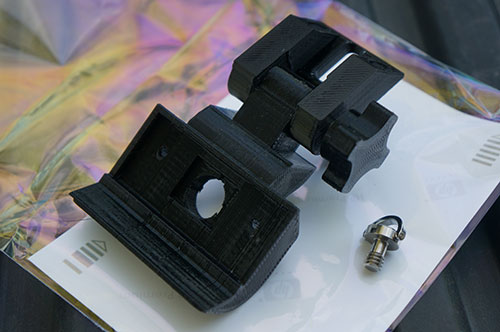

The bottom side of the mount
The old monitor mount
The extra support and quick release I made for the old monitor mount

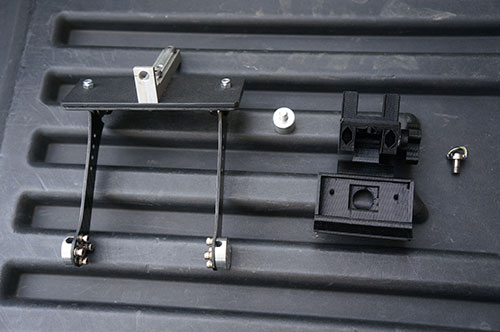

Look how much space it takes up for this mount. I can not fit this in my radio case

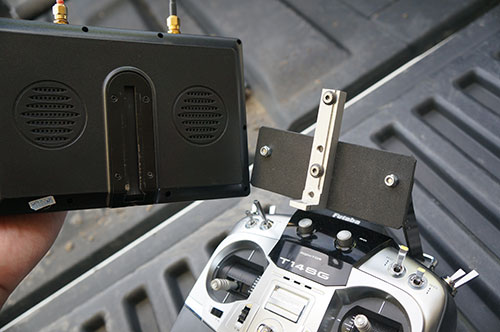

Old monitor mount on the left and the new Evolution 3D on the right

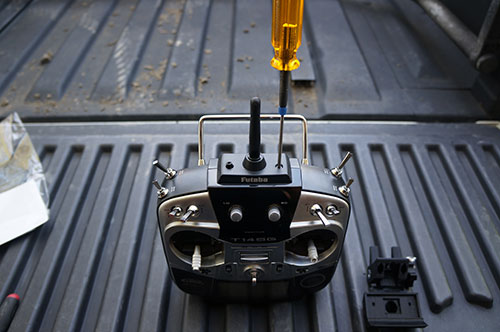

All you need to do is remove 2 screw from the top of the radio

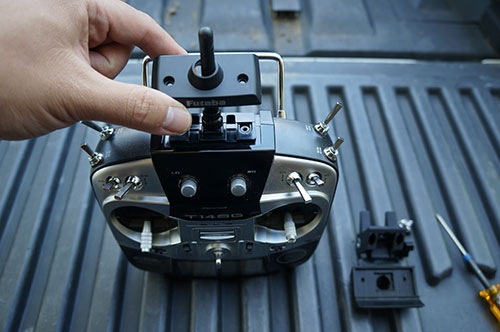

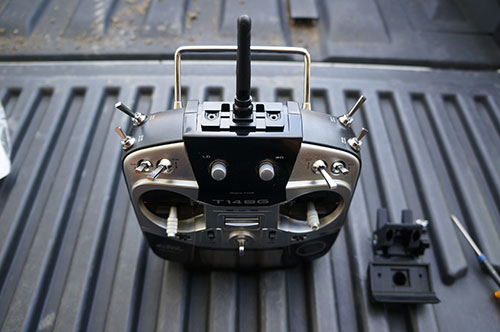

Remove the original top plate.

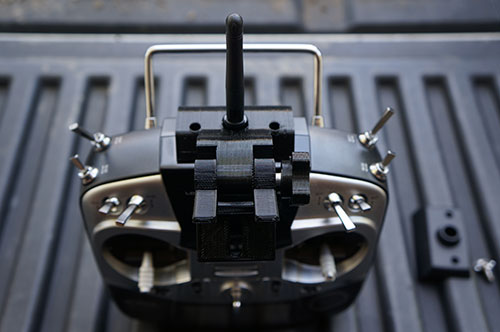

Now it is ready for the Evolution 3D mount

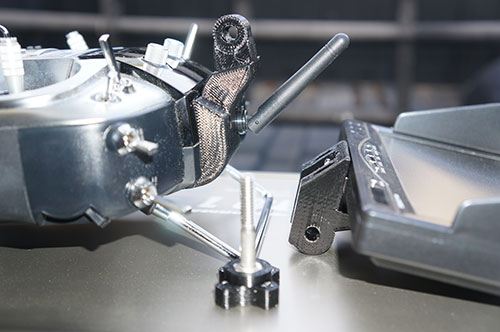

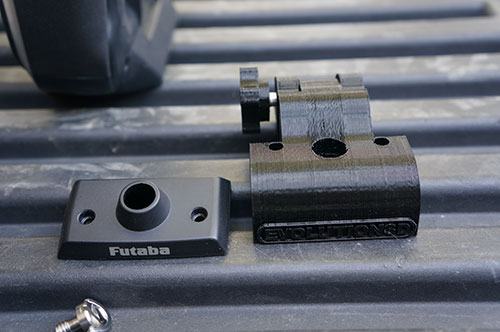

Here is the futaba top plate next to the Evolution 3D mount
Place the Evolution 3D mount on top and put the 2 screws back in
Here is the mount installed
A closer view of the mount

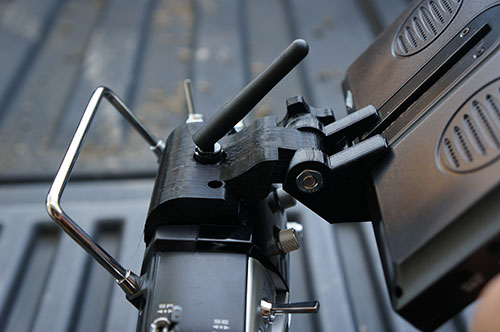

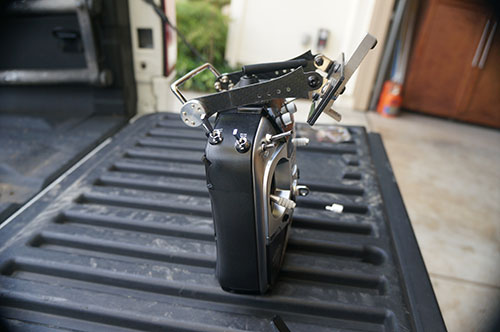

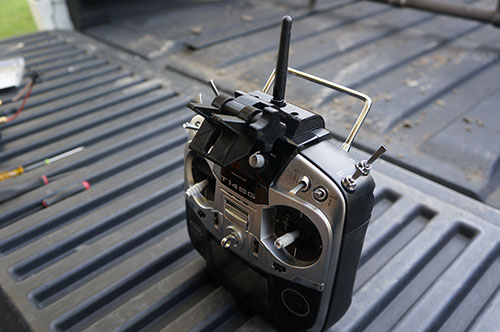

Side profile view

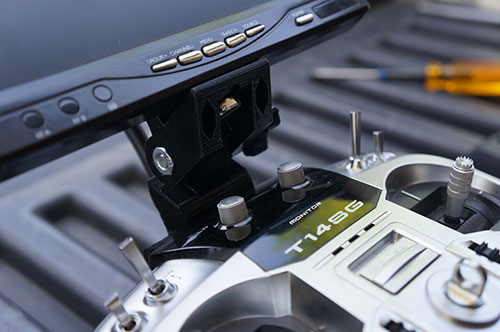

The closer view of the adjustable mount

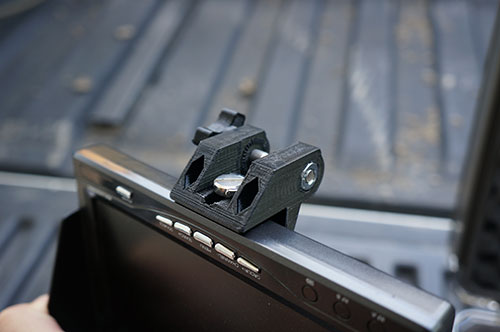

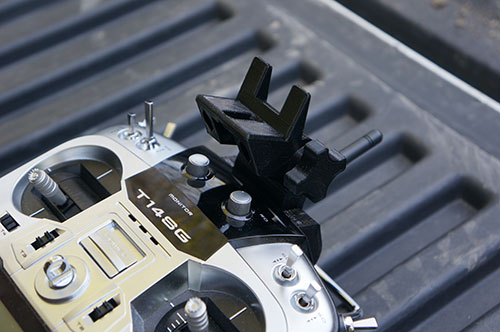

The back side of the mount

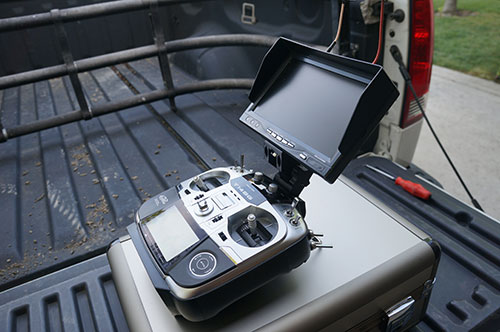

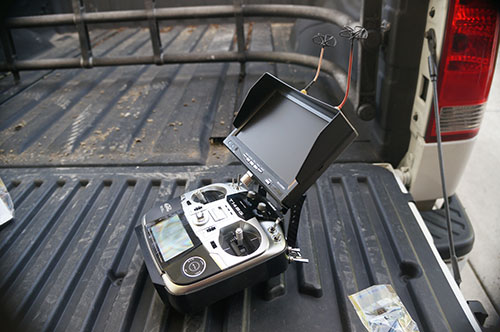

This is how it looks with the monitor mounted to the radio
Loosen the large screw with the handle to remove the monitor

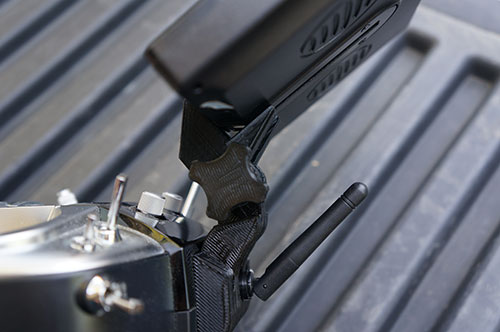

Profile view with the monitor removed. Here you can see the large screw with the handle.
It is a lot easier to remove the large screw than to the tiny screw that holds the monitor down.

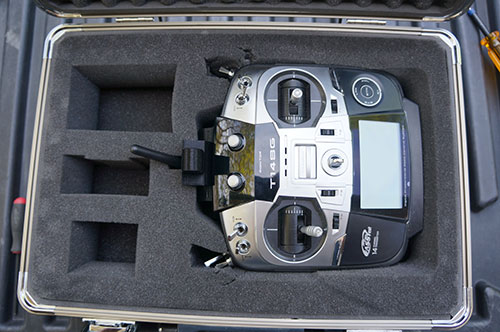

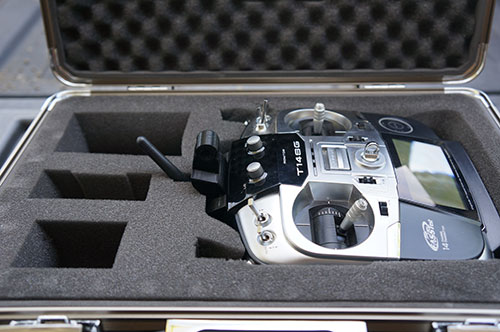

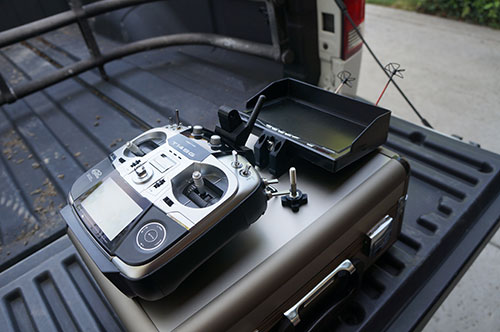

With the monitor off now I can fit the radio in the case. The other half of the mount is still attached to the radio too.
The mount is compact and all you need to do is take out one screw to remove the LCD monitor to store the radio.
|
