DJI F450 Flame Wheel Multirotor

Due to the time constraints of wanting to bring my quad copter with me on vacation in Hawaii, I will not have enough time to install and configure the 2 axis CF gimbal that I just bought.

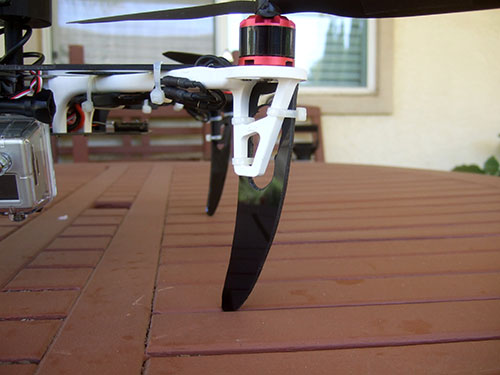

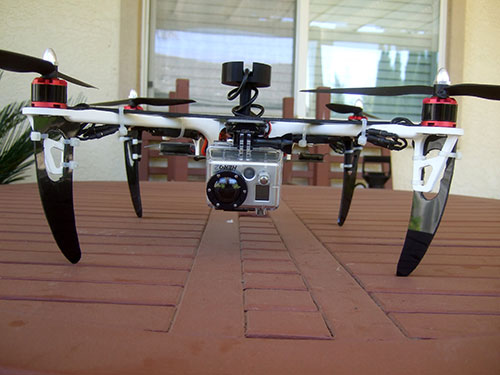

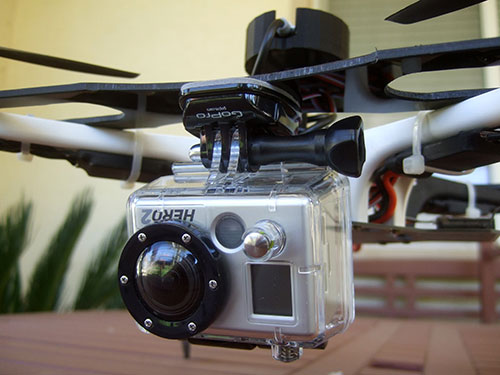

So the next best thing is build something like what Iris Aerial Photography makes. Mount the GoPro across the front of arms and raise the landing gears 3 inches so the GoPro with not hit the ground.

Here is a link to the website where I got this whole idea from: http://www.irisaerial.com/products.html

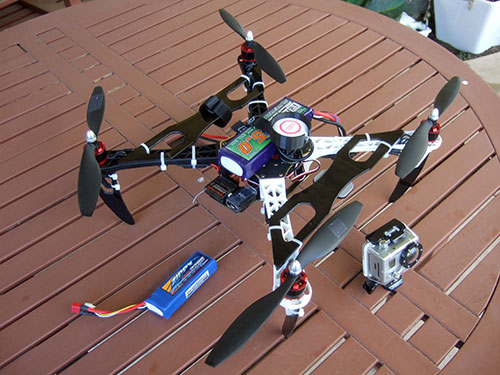

The reason why I liked this mounting idea is because it will maintain the center of gravity in the same spot with or without the GoPro mounted. If I deiced to fly the Quad without the camera I could install the battery to the orignial center-top location. And if the GoPro is mounted then the battery will go on the opposite end of camera on the other mounted.

The current take off weight with everything installed, including a 2200mah lipo and GoPro Hero 2 is 1270 grams (~2.7 lbs).

F450 RTF w/ all electronics: 810g
F450 w/ Camera mount: 909g
Custom Camera & Legs: 99g
GoPro Hero 2: 190g

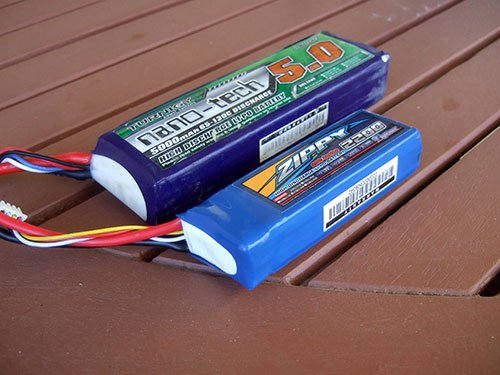

2200mah Lipo 20C 3S: 171g
5000mah Lipo 65C 3S: 445g

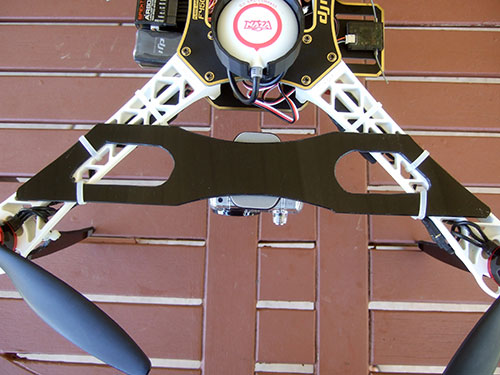

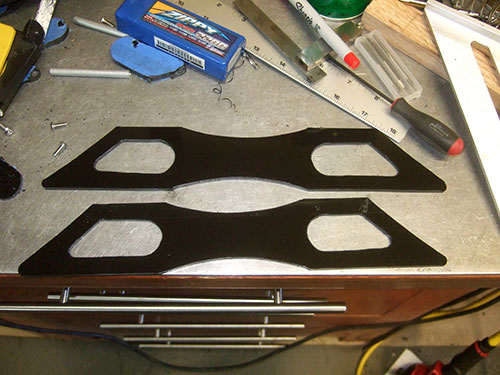

I started off with a sheet of platic that I placed across the quad copter arms and tracked the shape i wanted. I cut some holes in the plate for a few reason:

• Reduce weight
• To have a spot where the zip ties loop through
• Allow air to flow through the props, instead of blocking it.

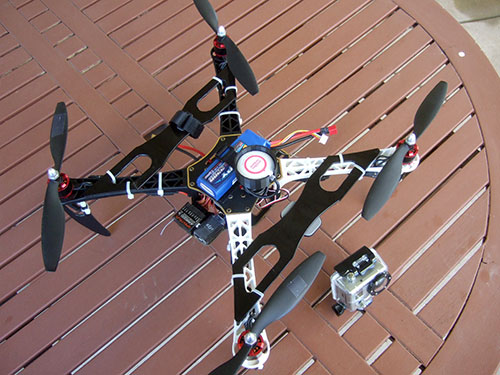

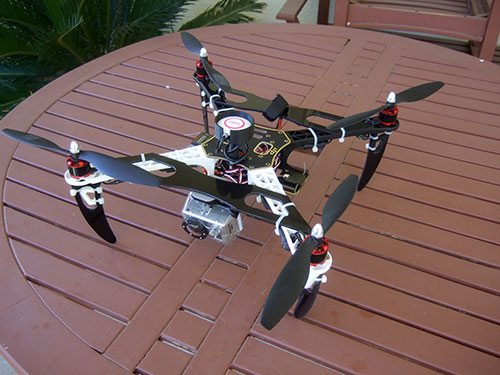

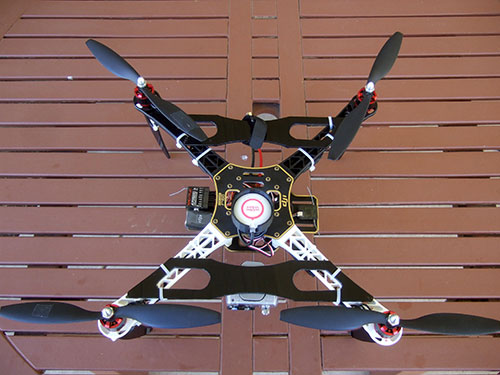

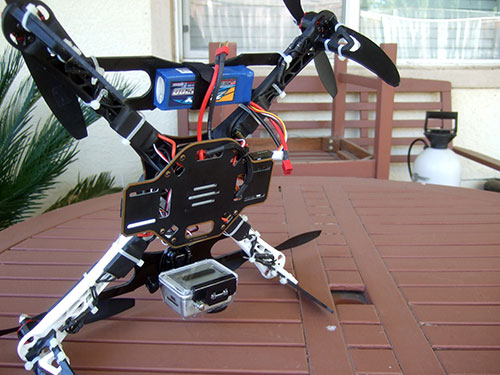

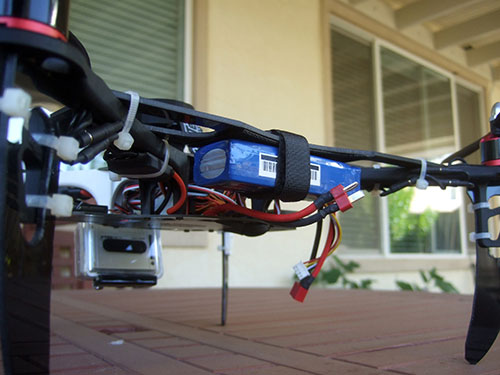

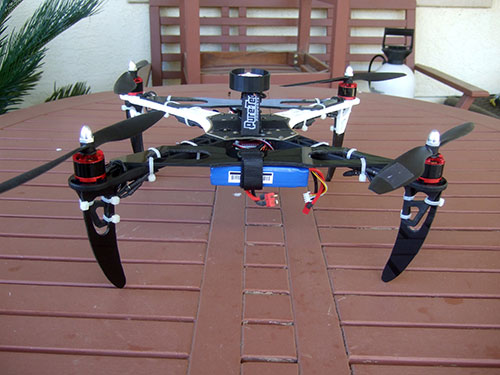

Here are the camera/battery mounting plates and leg extension installed.

My First video:

>> UPDATE: Videos I recording in Kauia
